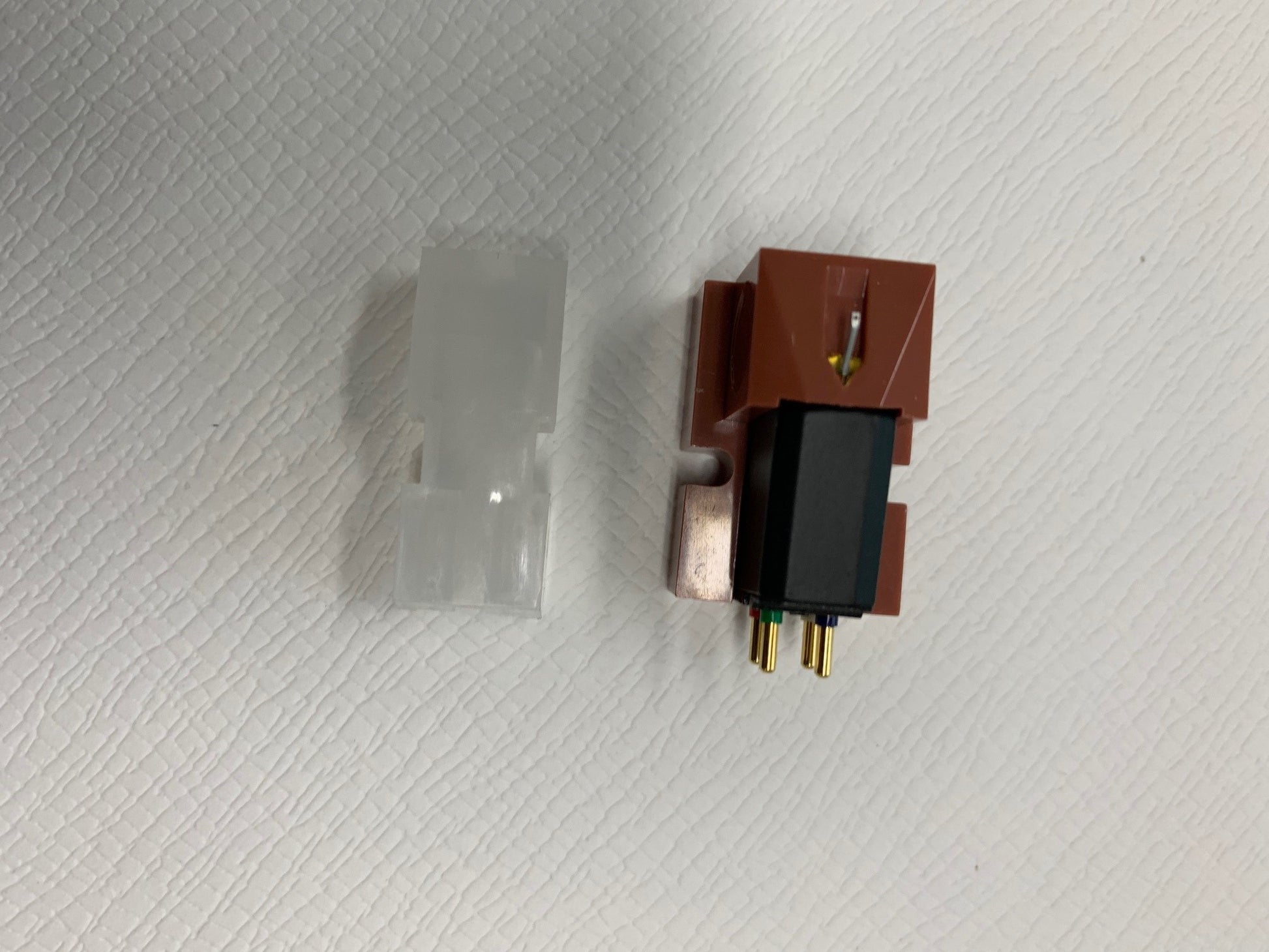

NAGAOKA MP-10,  Moving Permalloy Stereo Cartridge

Brand New (bulk Packed, no presentation box)

 It's an inexpensive Cartridge that makes the best use of Nagaoka's experience in sound reproduction to develop a superb level of performance.  The MP-10 phono cartridge features a spherical diamond mounted on an Alu. lightweight cantilever for superior record groove retrieval. It offers an excellent rendition of voice and music and is free from distortion.  The Samarium-Cobalt Magnet used in the magnetic circuit delivers high-output and a punchy sound.

- Type: Moving Magnet
- Cantilever: Aluminum alloy
- Stylus type: Polished spherical diamond with 0.5 mil radii
- Weight: 6.8 g
- Output voltage @ 1kHz,5cm/sec: 5mV
- Frequency response: 20Hz-20kHz
- Channel balance @ 1kHz: > 2.0dB
- Channel separation @ 1kHz: > 22dB
- Recommended loading: 47k ohms/100Pf
- Dynamic compliance: 7.0 x 10-6 cm/dyne
- Static compliance: 20 x 10-6 cm/dyne
- Tracking force range: 2g - 2.5 g
