McIntosh D150 Digital to Analogue Converter/Preamplifier, DEMO

The D150 digital stereo preamplifier supports many of the latest digital audio formats, such as DSD and DXD.

A unique DIN input connects to select McIntosh SACD/CD transports or players for the purist possible sound quality.

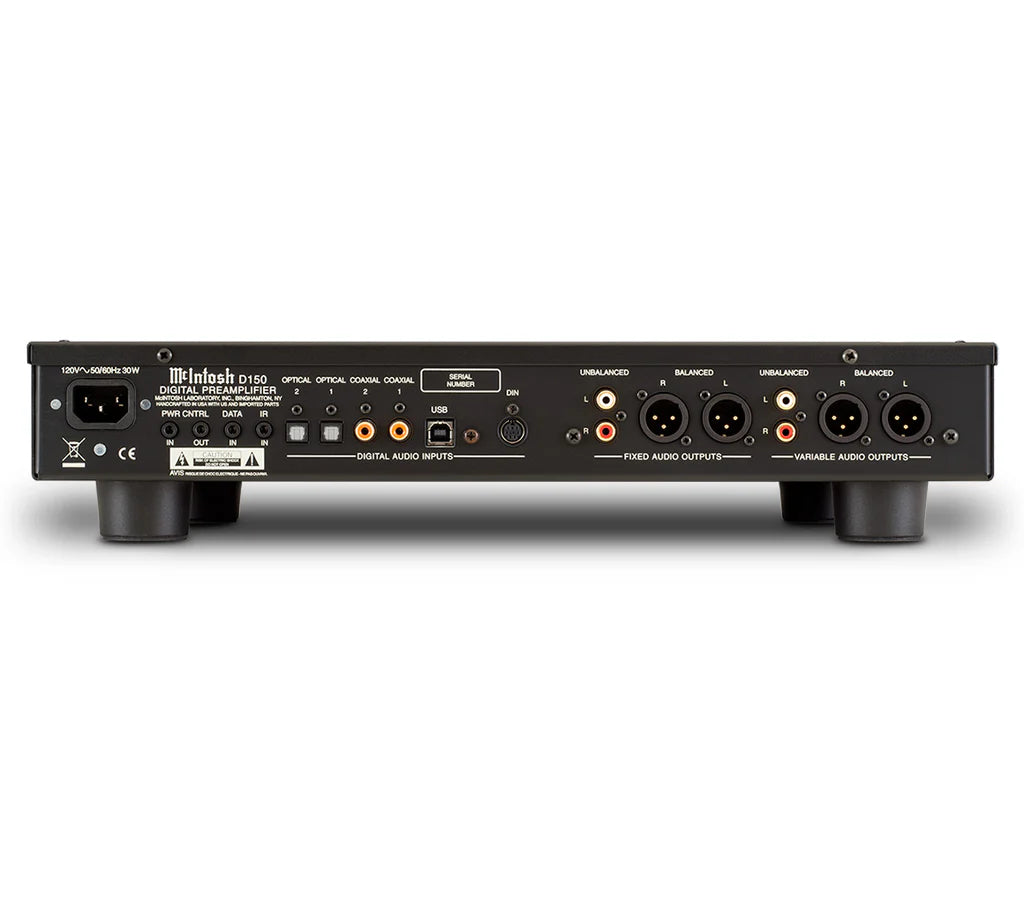

The USB input accepts up to 32-bit/384kHz signals and supports DSD64, DSD128, DXD 352.8kHz, and DXD 384kHz. Two coaxial and two optical inputs accept up to 24-bit/192kHz signals.

Advanced Quad Balanced, Digital-to-Analog circuitry can handle the finest
commercial recordings, assuring the best sound from your valuable music collection.
The D150 is also a superb headphone amplifier; connect your digital sources for a personal listening experience.

Frequency Response:
+/-0.5dB from 4Hz to 20kHz
+0.5/-3dB from 4Hz to 68kHz
(source dependent)
Total Harmonic Distortion:
0.0015%
Rated Output Voltage:
Fixed: 2.0 Vrms Unbalanced,
4.0 Vrms Balanced
Variable: 0-8 Vrms Unbalanced,
0-16 Vrms Balanced
Headphone Load Impedance:
20 to 600 Ohms
Overall Dimensions (W x H x D):
17-1/2” (44.54cm) x 3-7/8” (9.8cm)
x 16” (40.64cm), including the front
panel, knobs, and cables
Weight:
13.5 lbs (6.1 kg) net,
28 lbs (12.7 kg) in shipping carton
