Tandberg Model 5 Reel-to-Reel tape recorder
Tandberg Model 5 Reel-to-Reel tape recorder
Call us on 03 9882 0372 for more information or simply checkout online. Items covered under the HiFi Disposals warranty are serviced and guaranteed by Tivoli Hi-Fi.
Regular price
$500.00 AUD
Regular price
Sale price
$500.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Tandberg Model 5 Reel-to-Reel tape recorder - NOT FUNCTIONAL BUT REPAIRABLE

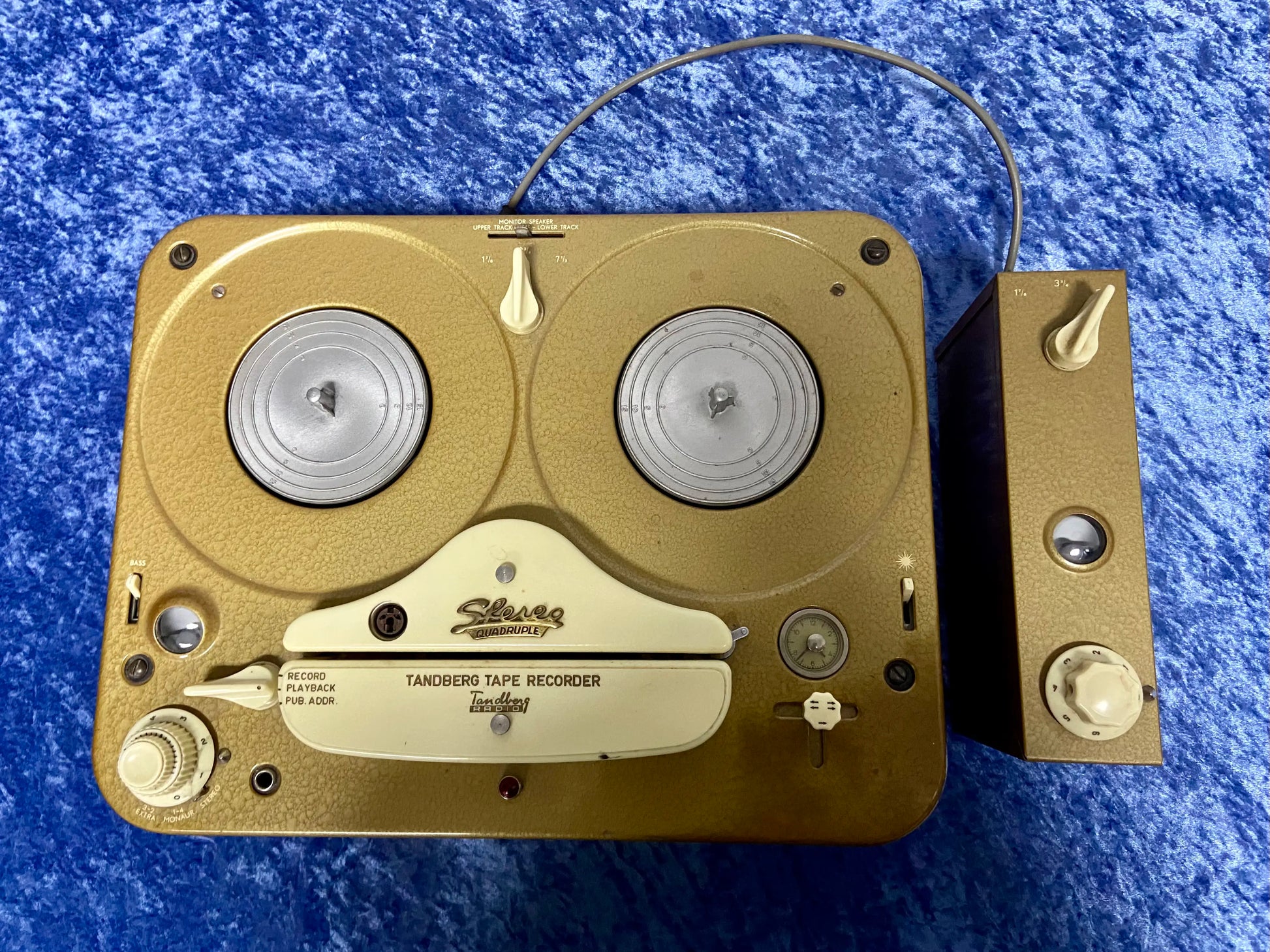

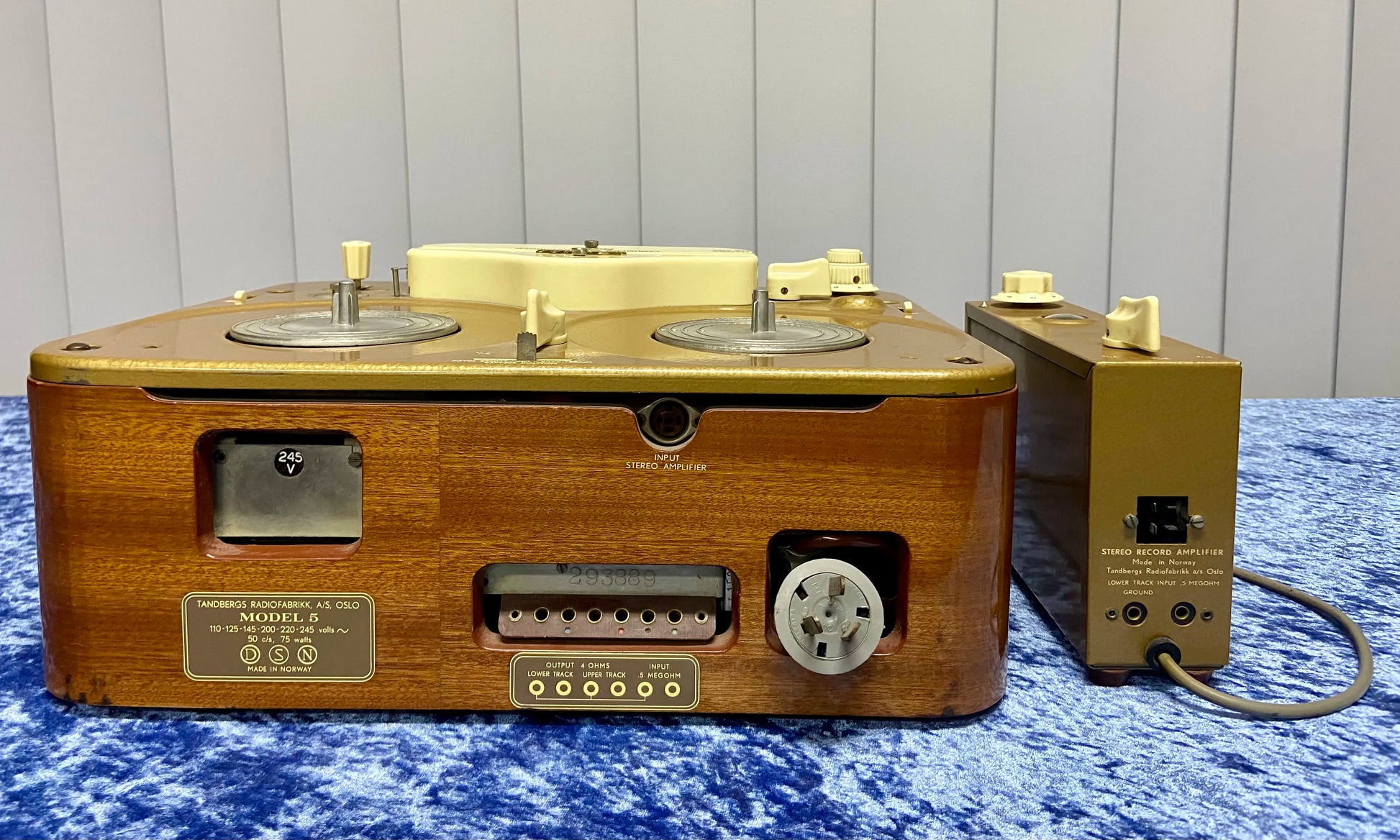

The Tandberg Model 5 (also known as the Series 5) is a classic, vintage 4-track reel-to-reel tape recorder introduced by the Norwegian manufacturer Tandberg in the late 1950s.
Key Design and Visual Features

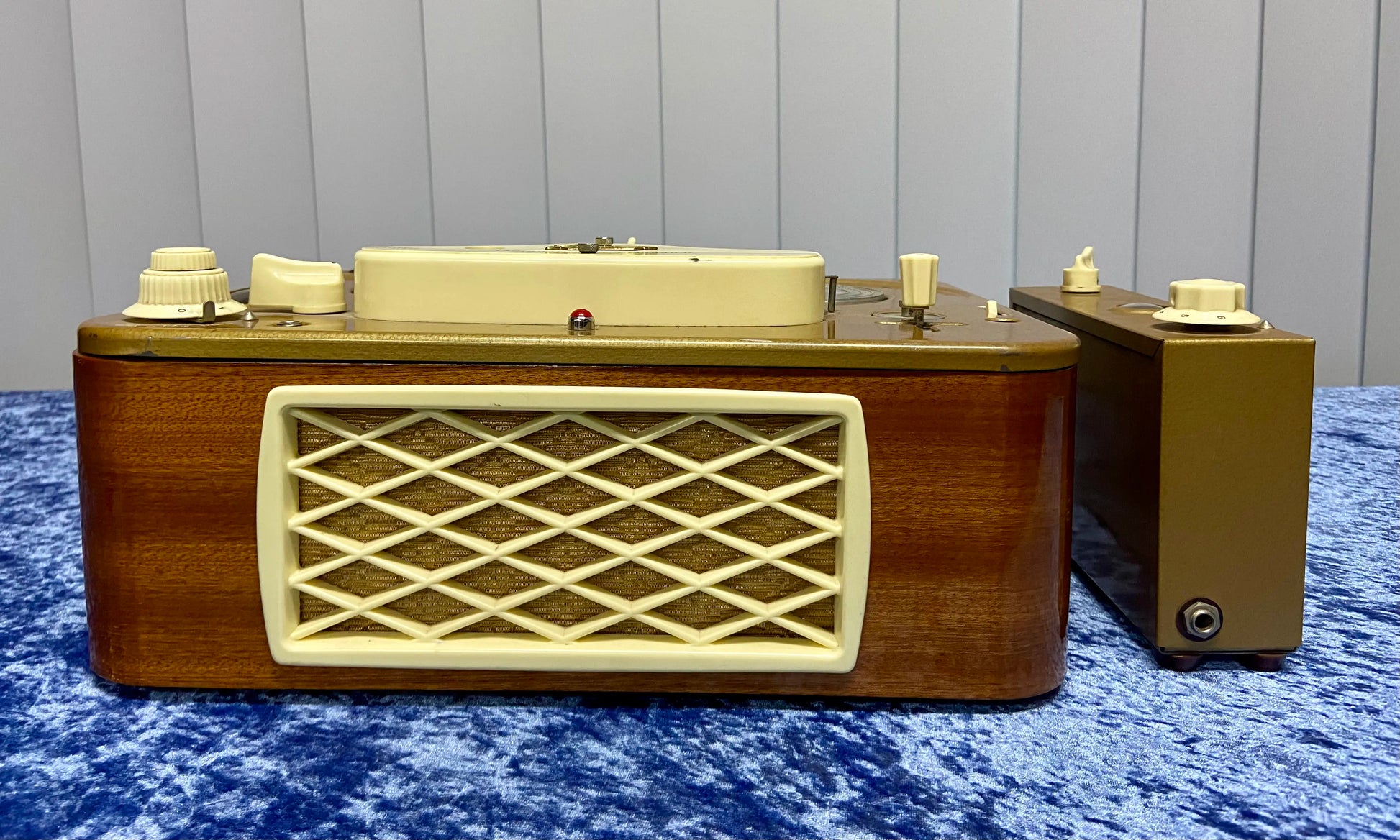

- Distinctive Cabinetry: It is famously housed in a styled wooden cabinet (often teak) with a distinctive cream or beige grill on the front face.
- Control Layout: The top plate features a unique bakelite joystick-style lever for transport control (Play, Rewind, Wind) and a central cream-coloured head cover bearing the vintage Tandberg script logo.
- Magic Eye Tube: It includes a central "magic eye" vacuum tube (EM84) that glows green to serve as an audio level indicator.
Specifications
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 1 x record/playback, 1 x erase
Reel size: up to 7 inch reel
Tape speeds: 1 7⁄8 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.15% (7 1⁄2 ips)
Frequency response: 30Hz to 16kHz (7 1⁄2 ips)
Signal to Noise Ratio: 55dB
Total harmonic distortion: 4%
Input: 1.5mV (mic)
Output power: 3 watts
Valve complement: ECC804, ECC83, EL84, EM71
Dimensions: 15 x 11-5/8 x 6-5/8 inches
Weight: 28lbs
